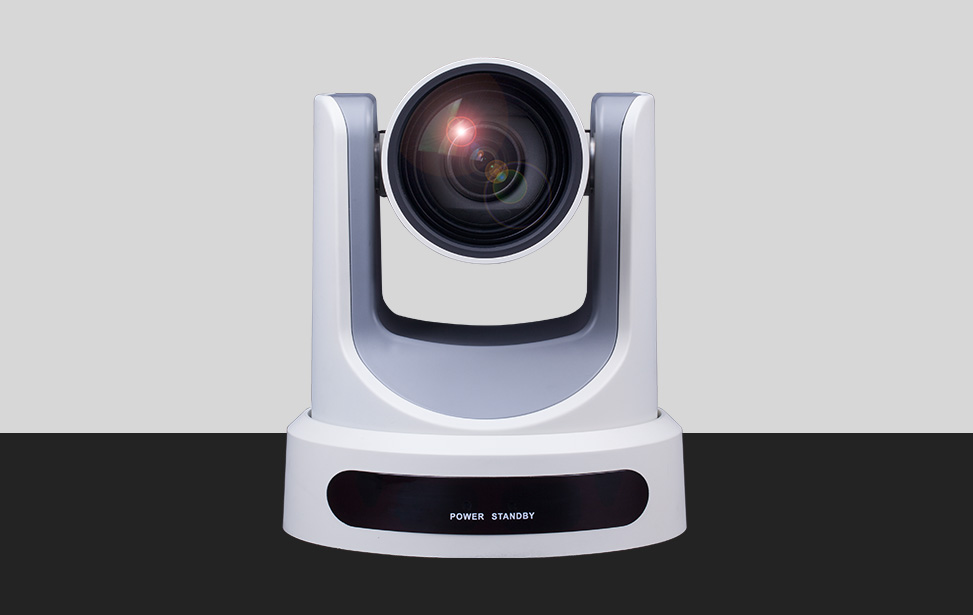

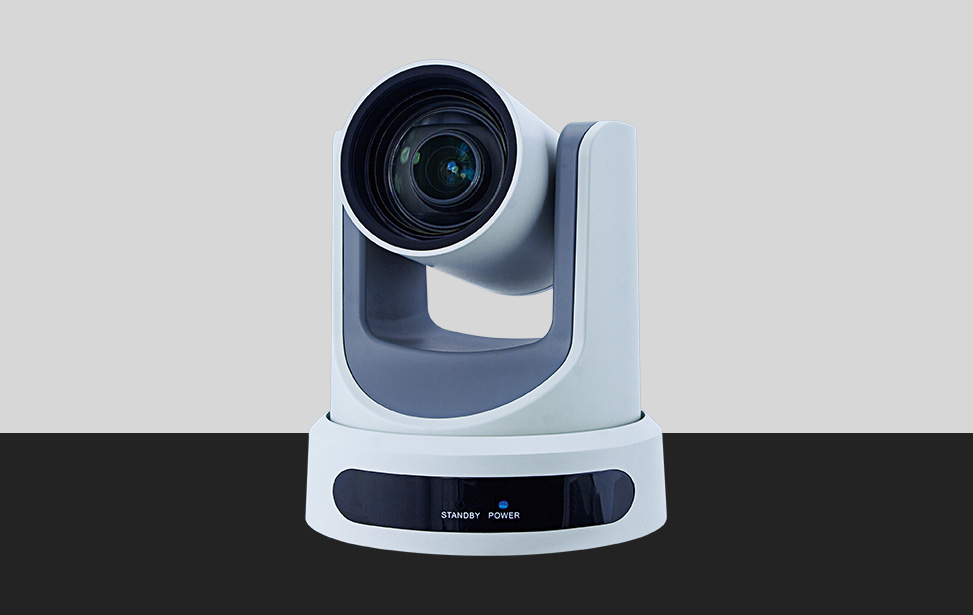

The Net2Point HD Camera 20x offers the highest quality zoom capability for any size office, conference room, meeting center or auditorium where full HD-quality video must be captured over a distance. With smooth, quiet pan/tilt/zoom handling and the antiglare visor, the Net2Point Camera 20x ensures that video conference participants and the information being shared remain the focus of the HD video call. Pan, tilt and zoom functions can be controlled easily from both ends of the call through the intuitive
Experience the power of video meetings with a Net2Point’s HD video conference camera
72.5° Wide-angle Lens + 32x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 32x digital zoom (optional)
USB3.0 Support USB3
Support USB3.0 ultra-high speed interface, can transfer uncompressed original video, and downward compatible with USB2.0. USB3.0, HDMI, Network can output at the same time. It also support CVBS interface
Microphone & AAC Audio Encoding
Built-in microphone, and support audio line in input. Support AAC audio encoding, better sound quality and smaller bandwidth
H.265 Support
The first H.265 encoding support conference video camera in the world, enabling full HD 1080p video stream by ultra-low bandwidth
1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolutions and achieve quality image
Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P
Face Detection
Built-in face detection module, enabling PTZ tracking (optional)
Local Storage
Support local storage module, directly recording to local USB flash disk without NVR
Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear
Remote Control
Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications
Freeze During Preset
Support "Freeze during Preset" function, can masked image when calling the preset
Model | N2P V12U |
Name | USB3.0 HD Color Video Camera |
Video System | HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 SD: 480i, 576i |
Sensor | 1/2.7", CMOS, Effective Pixel: 2.07M |
Scanning Mode | Progressive |
Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
Digital Zoom | 32x (optional) |
Digital Noise Reduction | 2D&3D Digital Noise Reduction |
Face Detection | Support (optional) |
Local Storage | Support |
Number of Preset | 255 |
Operate System | Windows XP, Windows Vista, Windows 7,Windows 8,Mac OS X, Linux |
Video Compression | H.265/H.264/MJEPG |
Main Stream Resolution | 1920x1080, 1280x720, 1024x576 |
Audio Compression | AAC |
Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |

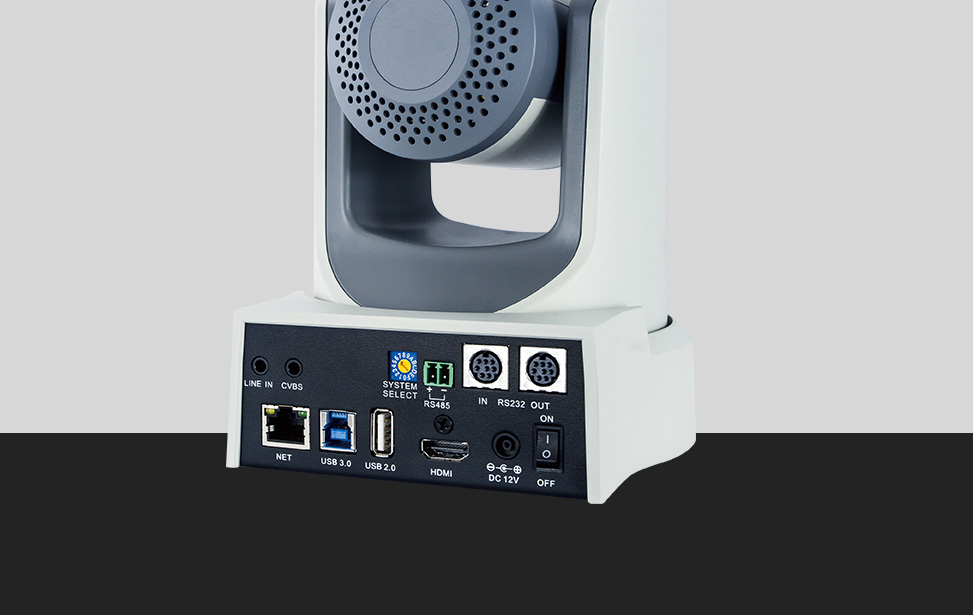

Input/Output Interface | |
HD Output | 1xHDMI: Version1.3 |
SD Output | 1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω |
Network interface | 1xRJ45: 10/100/1000M Adaptive Ethernet ports |
Audio Input | 1-ch: 3.5mm Audio Interface, Line In |
USB | 1xUSB3.0: Type B female jack 1xUSB2.0: Type A female jack |
Control Input/output | 1xRS-232 In: 8pin Min DIN, Max Distance:30m, Protocol: VISCA/Pelco-D/Pelco-P 1xRS-232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only 1xRS-485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P |
Generic Specification | |
Input Voltage | DC 12V |
Power Consumption | 12W (Max) |
Size | 169mm x 142mm x 164mm |
Net Weight | 1.35Kg |
