Smart GPS Tracker

Smart GPS Tracker

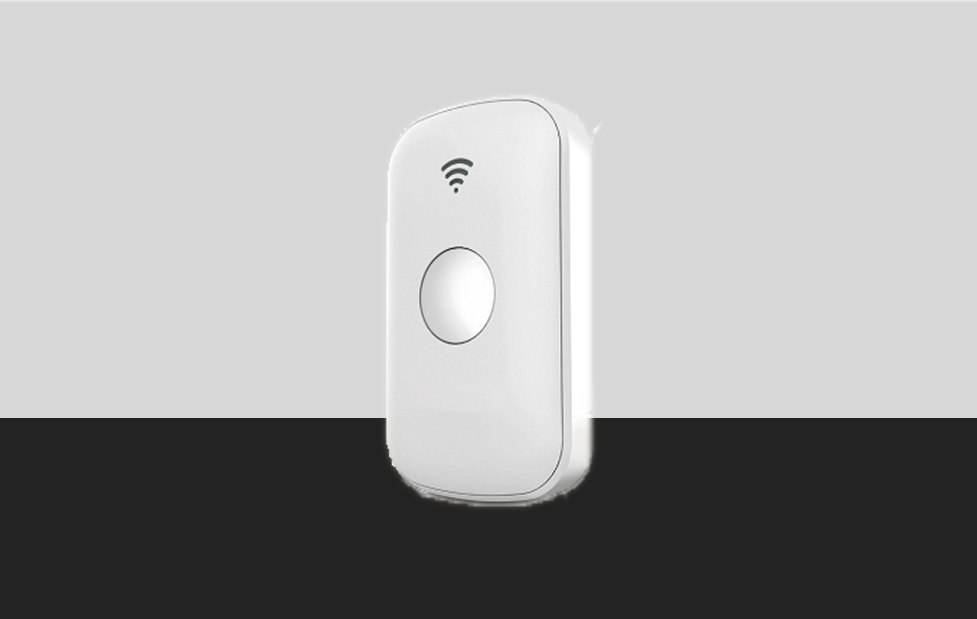

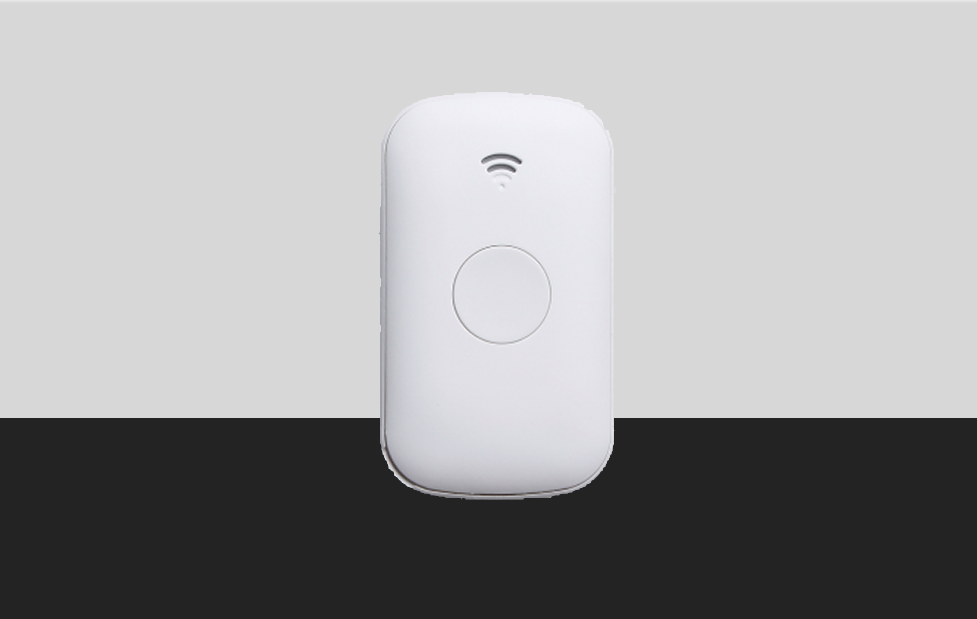

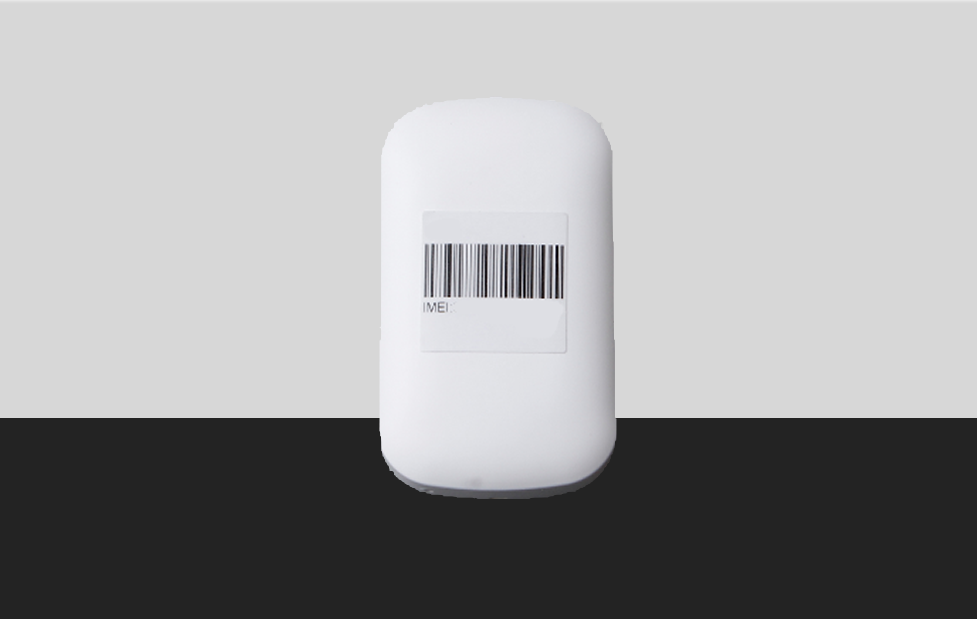

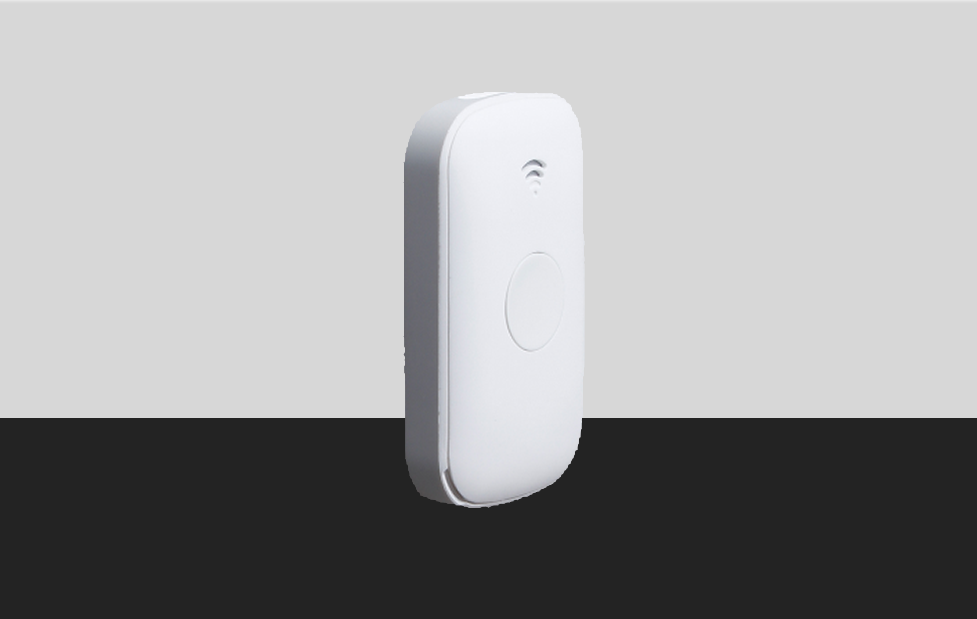

Net2Point has introduced Smart GPS Tracker which is a miniature GPS tracker designed for personal and asset tracking. With alerts like geo-fence boundary crossings, low battery, SIM card change alert and many other advanced reporting features, Smart GPS Tracker is simply the most versatile tracker. With 900mAh Li-polymer battery, it is able to work up to 6 days.

GPS+AGPS+LBS positioning

IP65 waterproof grade

Fall alarm

SOS call

Geo-fence

SIM change alarm

Tracked by: SMS, APP, Web

                        GSM Specification
GSM Frequency 850/900/1800/1900MHz
GPRS Class 12,TCP/IP
Memory 64MB
Phase Error RMSPE<5,PPE<20
Max Output GSM850/GSM900:33±3db
GSM1800/GSM1900:30±3db
Max Frequency Error ±0.1ppm
Sensitivity Class ⅡRBER2%(-10dBm)
                            GPS Specification
GPS Chip High sensitivity GPS chip
Frequency L1,1575.42MHz C/A code
Channels 66
Location Accuracy <10 meters
Tracking Sensitivity -165dBm
Acquisition Sensitivity —148dBm
Positioning Time Hot-start:≤1 sec(open sky)
Cold-start:≤32 sec(open sky)
                            Main Specification
 Voice monitor range ≤5 meters
Button 1xSOS, 1xPower On/Off
Antenna Built-in quad-band GSM antenna, GPS ceramic antenna
LED Status LED
Battery 900mAh/3.8V lithium-polymer battery
Charger voltage/current 5VDC/1A
 Working Time 6 days (Wi-Fi positioning, location data uploaded at 10 minutes interval)
Waterproof grade IP65
Dimensions 69.0(L)*41.0(W)*16.0(H)mm
Weight 70g
Operating Temperature -20℃ — +70℃
